02/06/2008 - I added the top to the frame and made an oak workspace for the top. The machine comes alive
The two pieces above will sit in a 1/8" groove on a 1/2" think piece of 6061 aluminum that will bolt to my Z axis.
| EL34's CNC Stuff | |
| Back to main CNC page | |
| - | |
| 02/04/2008 - Took the machine to be welded 02/06/2008 - I added the top to the frame and made an oak workspace for the top. The machine comes alive | |
| - | |
| Click on the images to see a larger image | |
|
|

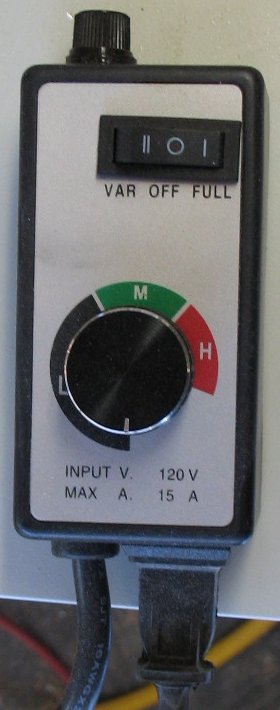

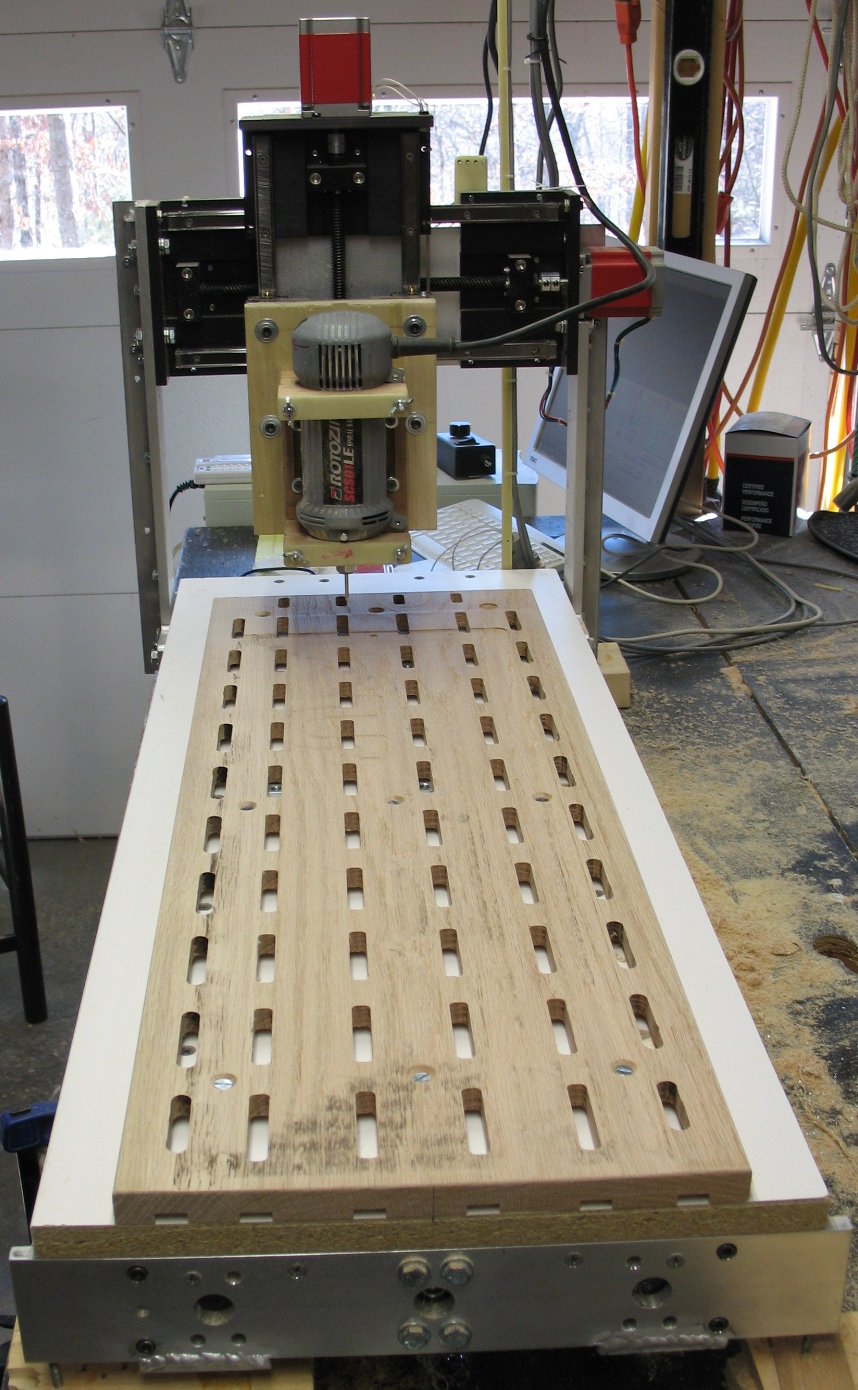

| The melamine top is attached to the frame rails. The oak work area is attached to the top. It's alive and working. I have the old tool mounted to the new machine until I make a new tool holder. | New motor speed control |
| - | |
| Click on the images to see a larger image | |
|
|

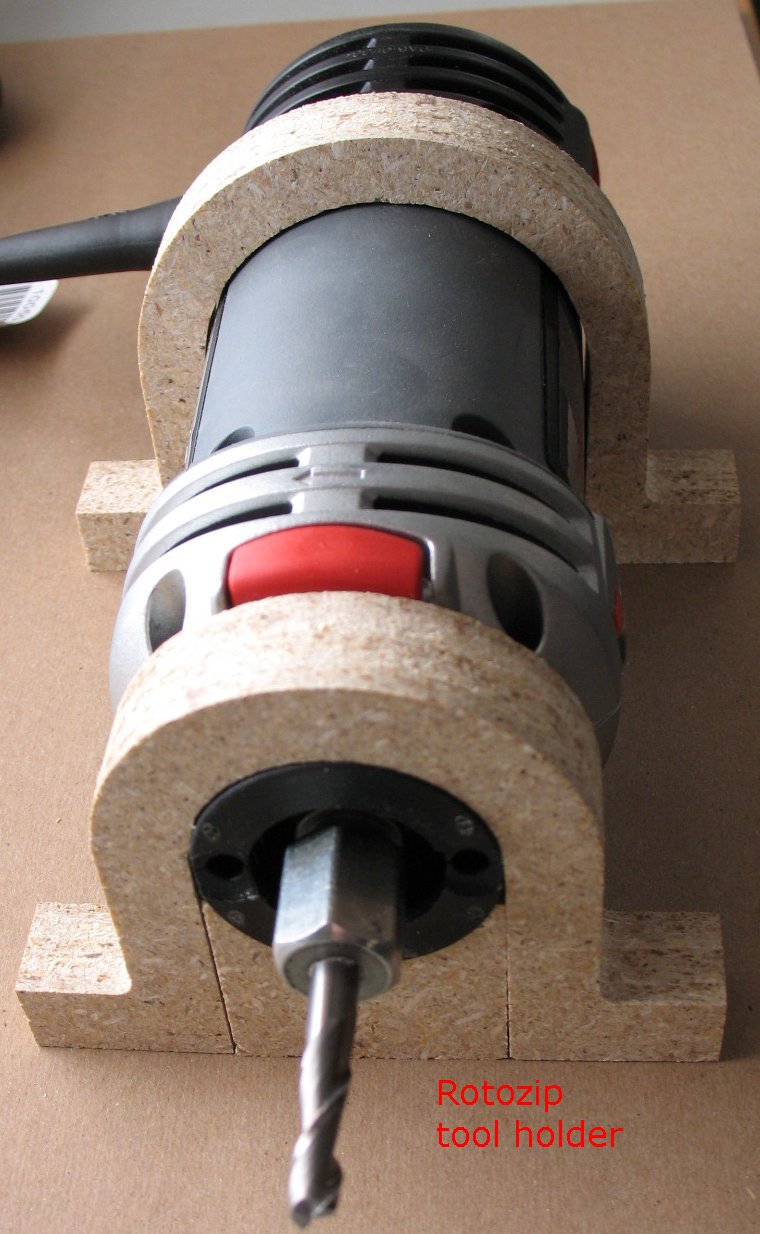

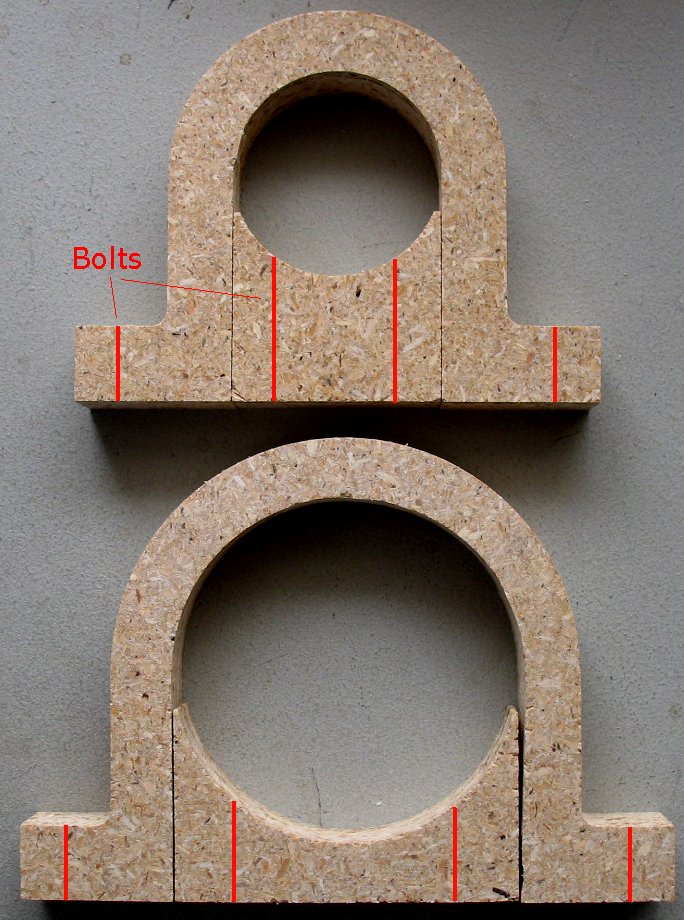

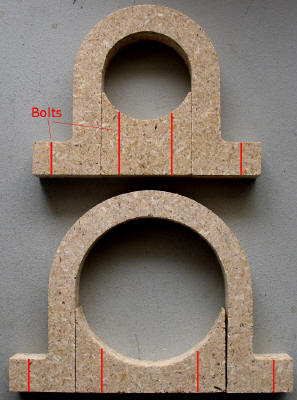

| Tool mount idea #1 for the new machine. The red lines are where bolts will be. The two pieces above will sit in a 1/8" groove on a 1/2" think piece of 6061 aluminum that will bolt to my Z axis. | New RZ10 Rotozip sitting in tool holder mock up. |
| - | |
| Click on the images to see a larger image | |
|
|

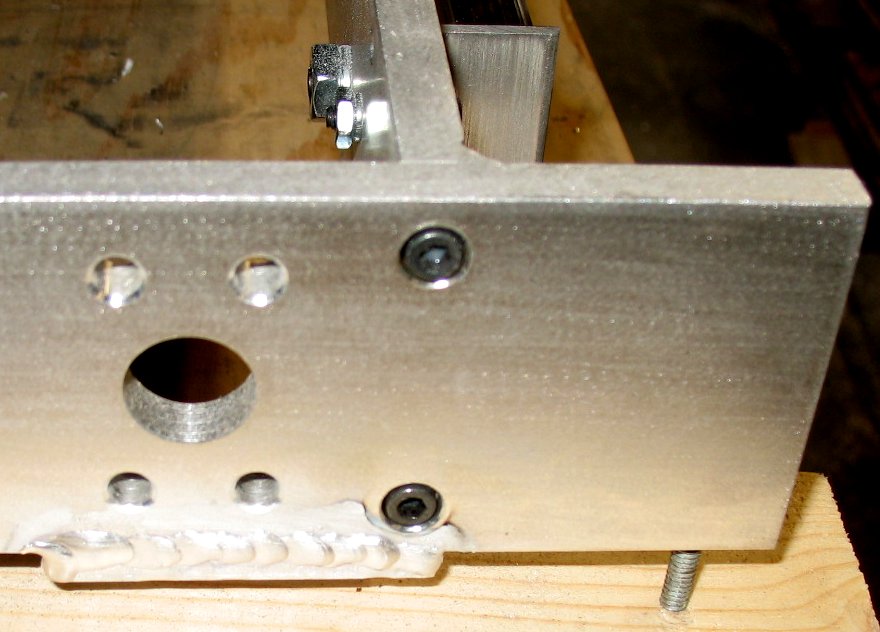

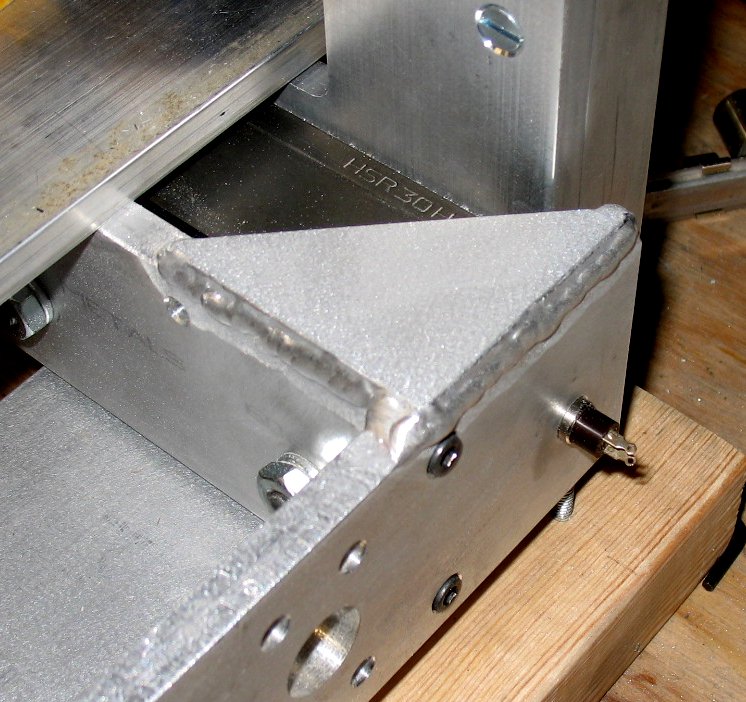

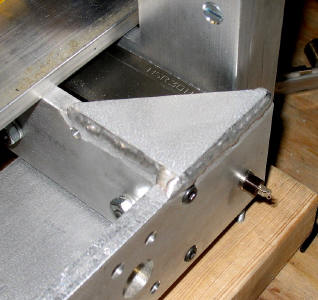

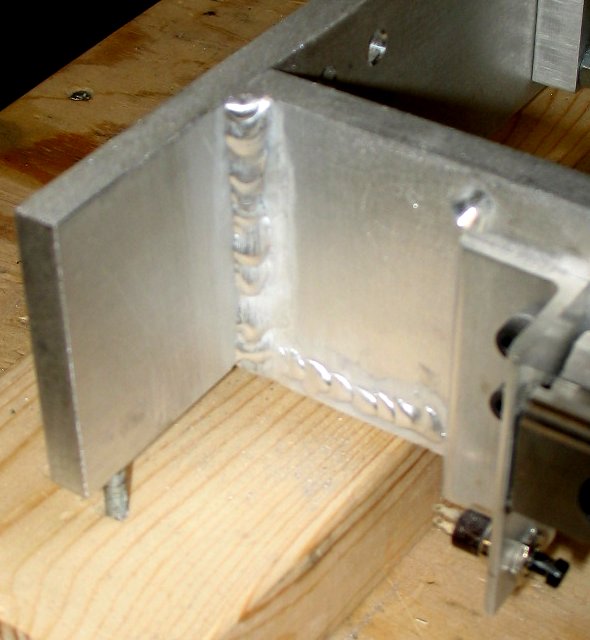

| Frame welded - The corner gussets and corners are welded in place | |
| - | |
| Click on the images to see a larger image | |
| - |
| Frame welded - The corner gussets and corners are welded in place- | |
| - | |
